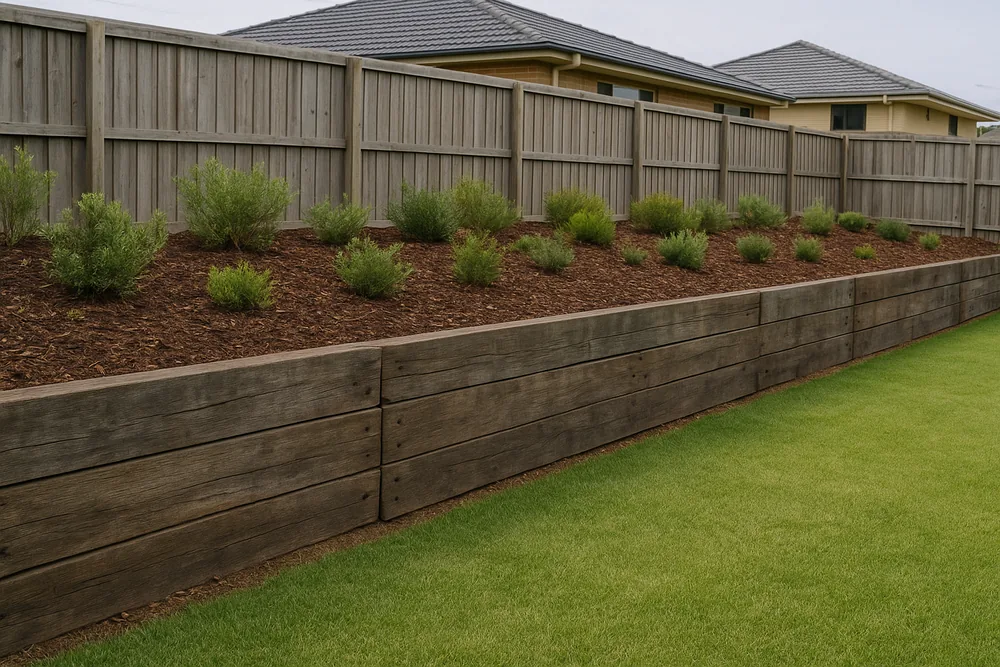

Timber Sleeper Retaining Walls in Newcastle
A timber sleeper wall follows the same NSW threshold and exempt-development limits as any other retaining wall: over A$5,000 needs a licensed contractor, and without council approval it cannot be more than 600 mm high or closer than 1 m to a boundary. Because a timber sleeper wall is often built into an existing garden, the job most commonly runs into City of Newcastle's tree rules before anything else.
Thanks — we have your enquiry. Someone will be in touch shortly. Prefer to talk now? Call (02) 4915 2985.
What timber sleeper retaining wall work in Newcastle actually involves
A permit from City of Newcastle is needed before clearing declared vegetation, which includes a tree 3 m or taller, or a single-trunk tree 15 cm or more in diameter measured 1.4 m above the ground. Where the job involves cut or fill excavation, a report by a consulting arborist (AQF5) is required for any tree, including one on the neighbour's land, within 3 m of the work, or within 5 m if its trunk is more than 36 cm in diameter. The 2026/2027 application fee for private tree removal is A$235 for 1 to 3 trees, plus A$35 for each additional tree, with no GST.
Height and siting still apply
A timber wall built with no council approval is exempt only up to 600 mm, at least 1 m from each boundary and at least 2 m from any other retaining wall on the site. Over that height it needs professional engineer certification or a development application. In a Mine Subsidence District a timber wall follows the same 1 m exempt limit as any material on Subsidence Advisory's own list. The main page sets out the full exempt list, and the drainage page covers the water behind the wall.
Check your address on the Spatial Viewer before you start, and lodge a free Before You Dig Australia enquiry before digging any posthole, whatever the wall's size.
Retaining wall costs and rules check
Timber Sleeper Retaining Walls in Newcastle — common questions
Does a tree near the wall need a permit?
A permit from City of Newcastle is needed before clearing declared vegetation, which includes a tree 3 m or taller, or a single-trunk tree 15 cm or more in diameter. The 2026/2027 fee is A$235 for 1 to 3 trees, plus A$35 for each extra tree.
How high can a timber wall be without approval?
No more than 600 mm, and at least 1 m from each lot boundary. Past 600 mm it needs an engineer or a development application.
Is an arborist's report ever required?
Where the job includes cut or fill excavation, a report by a consulting arborist is required for a tree within 3 m of the work, or within 5 m if its trunk is more than 36 cm in diameter, including a tree on neighbouring land.
